WONDER FRONT MOUNT INTERCOOLER KIT : TOYOTA ARISTO (JZS147)
WONDER FRONT MOUNT INTERCOOLER KIT : TOYOTA ARISTO (JZS147)
FRONT MOUNT INTERCOOLER KIT : TOYOTA ARISTO (JZS147)
IMPORTANT NOTICE : This kit is currently in stock and ready for immediate dispatch!
This intercooler kit has been specifically designed to substitute the GReddy LS-Spec intercooler kit (Part #12010463) which has been discontinued and is no longer available. The kit is supplied with the same parts are the previously supplied GReddy kit featuring the same performance intercooler assembly, aluminium piping, p/s intermediate tube, silicone pipe adapters and clamps.
The addition of a Wonder intercooler is one of the best ways to safely increase horsepower in a turbocharged engine. By reducing the engine’s inlet temperatures, a denser air charge will enter the engine; this can make more horsepower at the same boost level and even more power at higher boost levels. Even if there is a factory-installed intercooler, generally these stock units are not ideal even for factory boost levels. They are usually mounted in awkward locations and become very susceptible to heat saturation. Factory intercoolers generally are not ideal for increased boost levels. Wonder Intercooler Kits are specifically designed, sized and fabricated for a wide variety of turbo applications (from low – medium boost levels on converted normally aspirated vehicles, to mild – high boost-up applications on stock turbocharger set ups, to even extreme boost levels, with large turbo upgrades)
WONDER INTERCOOLER CORES
Compared to the laminated type of core, and a lightweight straight Hall fin tube core, achieving superior performance and cost performance. It is widely corresponding intercooler kit from the normal boost-up to sports Turbo exchange. Also designed in smooth pipe layout for each car model, and comes with a short parts required for installation silicon hoses and hose band, stay, etc.. Aluminium intake pipe adopts a gloss beautiful barrel polishing finish, will also be high-quality finish looks at the bumper installed.

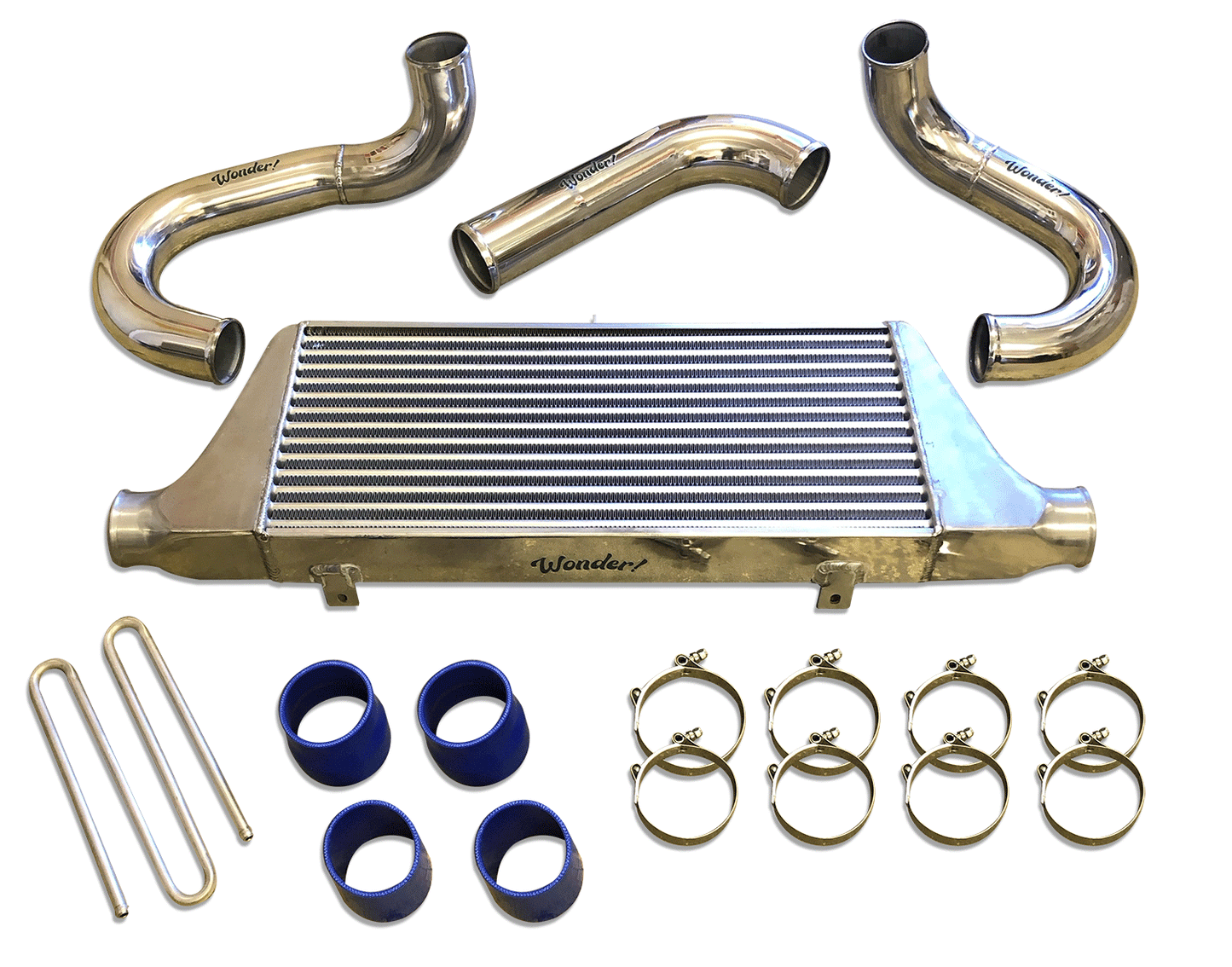

Kit Supplied with:

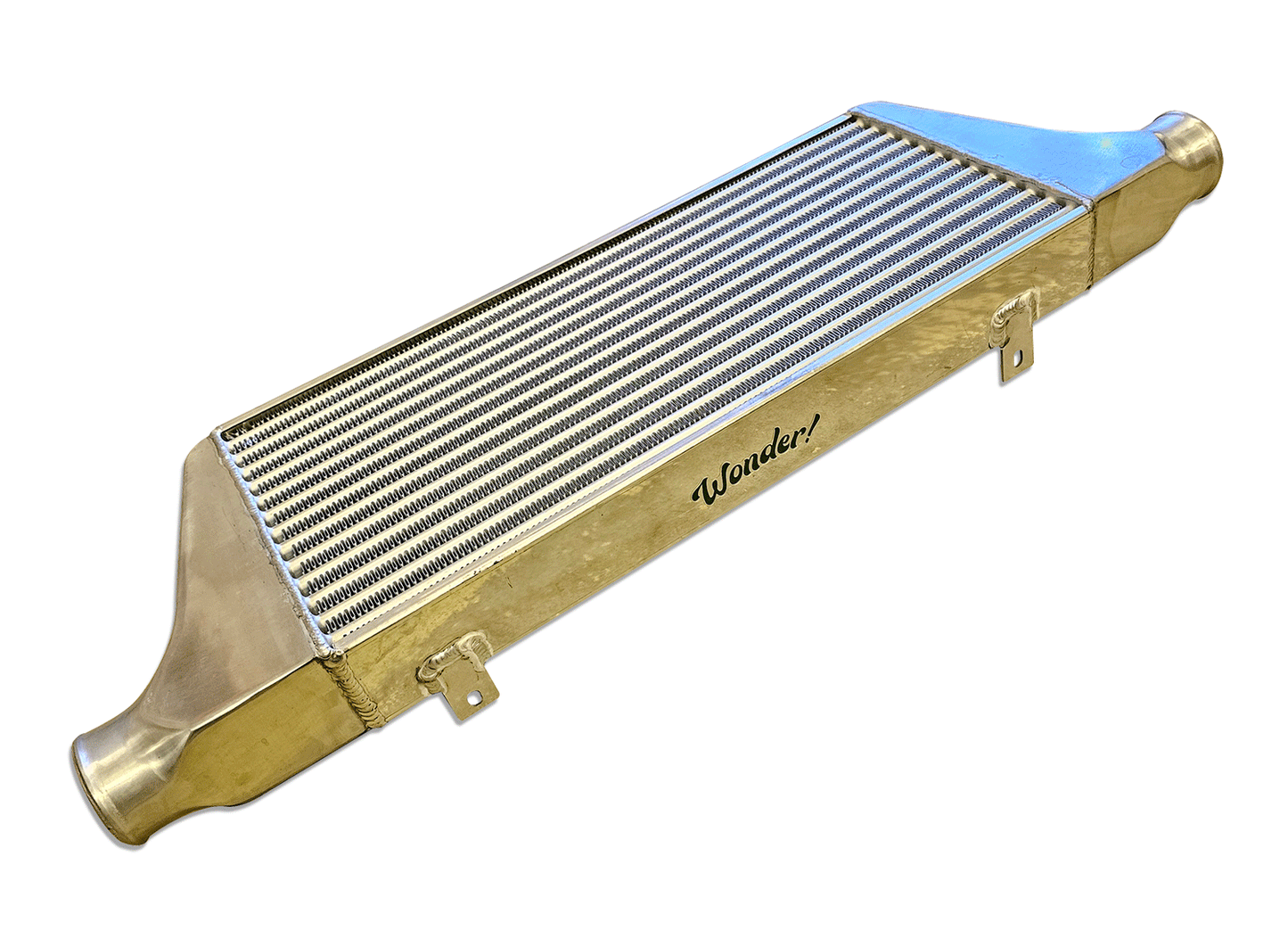

- 1 x Front Mount Intercooler (JZX147)

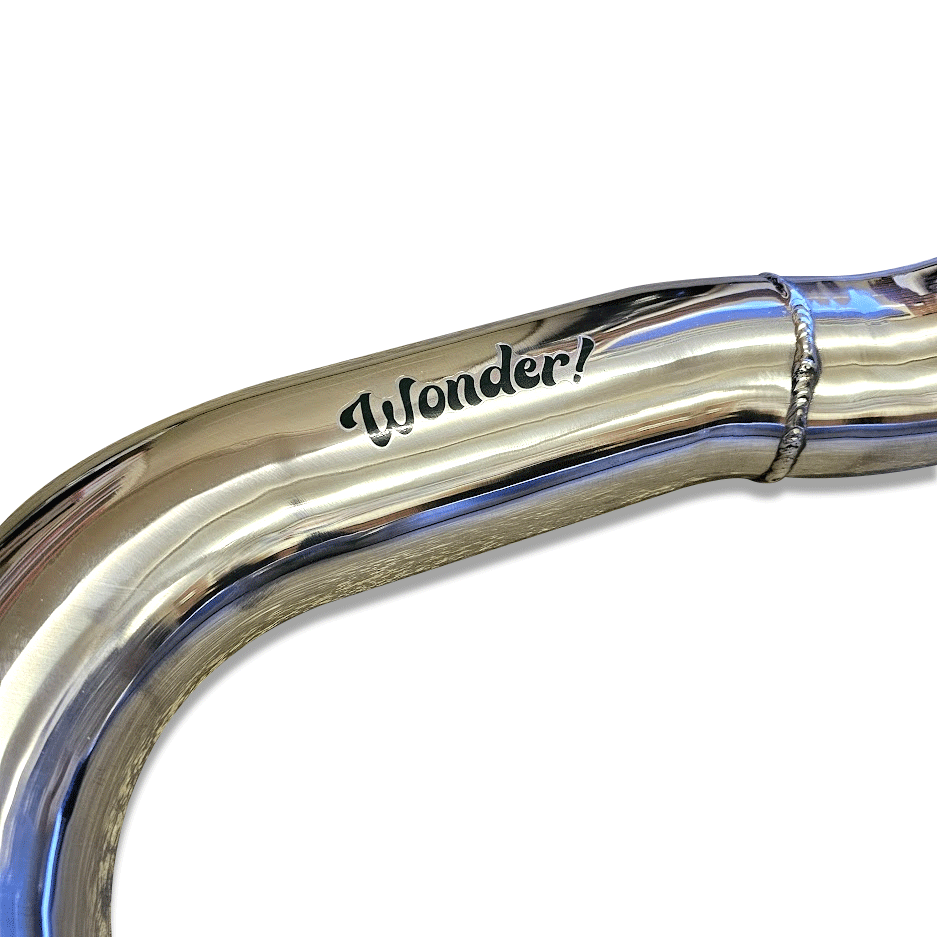

- 1 x Polished Alloy Piping Kit (3-Pieces)
- 1 x 2-Ply Silicone Hose Kit (4-Pieces)
- 1 x Hi-Torque Hose Clamp Kit (8-Pieces)
- 1 x Oil Line
- 1 x Wonder Super Cooler Decal Package (Gold/Silver/Green) + Sakura Window Decal
IMPORTANT PRODUCT INFORMATION
Maker | WONDER AUTO PARTS |
Part No. | WR-12010463 |
Vehicle Make | TOYOTA |
Vehicle | ARISTO |
Model | JZS147 |
Year | 1991/1 - 1997/8 |
Engine Model | 2JZ-GTE |
Remark | Will only fit AT models |
Remark | Can be installed to OEM turbine and GReddy turbo kits. Relocation of the fan and PS cooler is required for installation. |

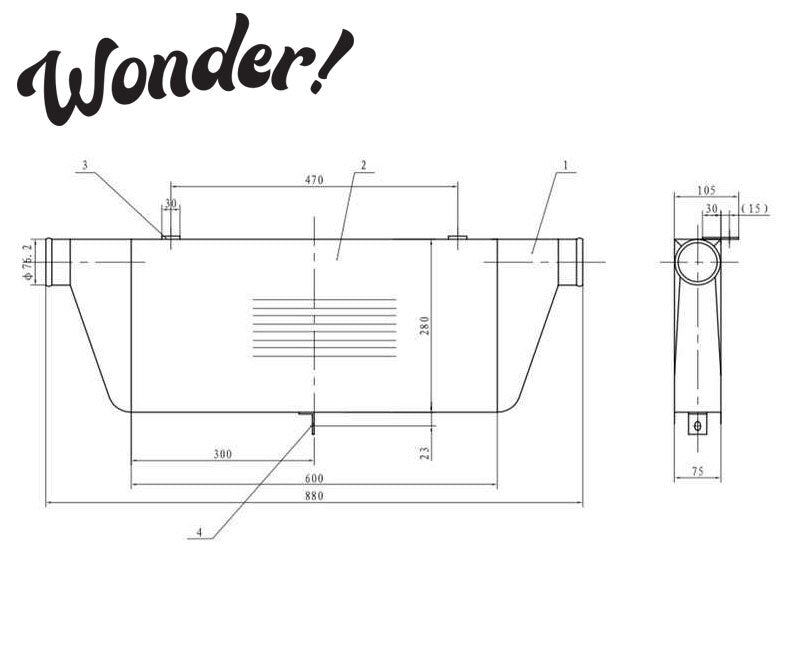

Core Type / Core Size | Hi-Flow / H280mm / L600mm / W76mm |
Remark | Cannot be installed together with an oil cooler kit. |
Remark | Modifications to the bumper bar reinforcement will be required for installation. |
Remark | Modifications to the bumper bar will be required for installation. |
